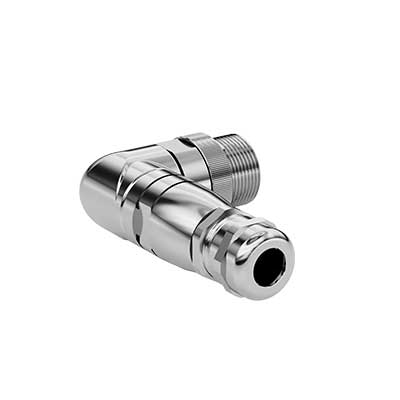

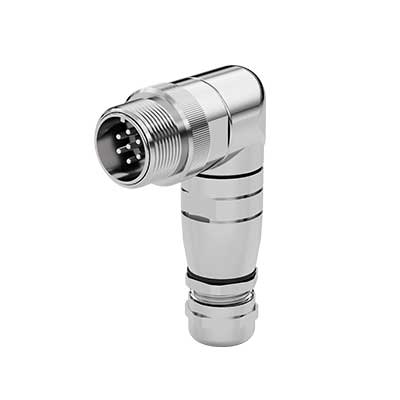

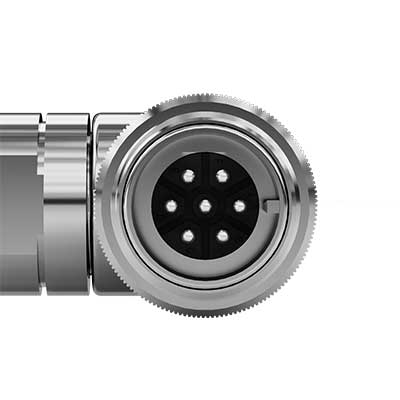

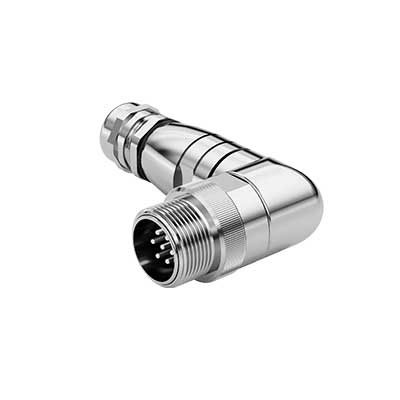

EN07 6+PE Male 90° Elbow Modular Connector

Return to List

Technical Data Download 3D

General Characteristics

Contacts	Termination	Wire gauge in mm²	Cable OD	Shell protection	Mechanical operation	Operating temperature	Lower temperture
7	solder	-	3 ~ 9.5mm	IP67	>500	+85℃	-25°C

Rated voltage	Rated current	Contact resistance	Insulation resistance
250V	10A	≤10mΩ	＞100MΩ

Pin contact	Socket contact	Contact plating
CuZn	CuSn	Au

The 3D feature is not yet available, so stay tuned!
