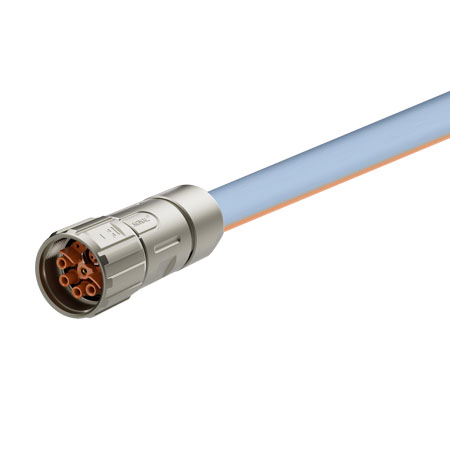

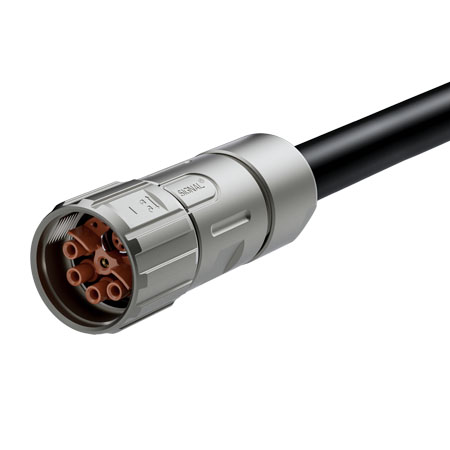

M23 15(4+4+6+PE)Pins Female Connector

Return to List

Technical Data Download 3D

General Characteristics

Contacts	Termination	Wire gauge in mm²	Wire gauge in AWG	Shell protection	Mechanical operation	Upper temperature	Lower temperture
15	crimp	-	-	IP67	-	+85℃	-40℃

Rated voltage	Rated current	Contact resistance	Insulation resistance
600V	28A	≤5mΩ	≥100MΩ

Insulating materials	Shell	Contact element
PA66	Copper alloy	Gold-plated copper alloy
