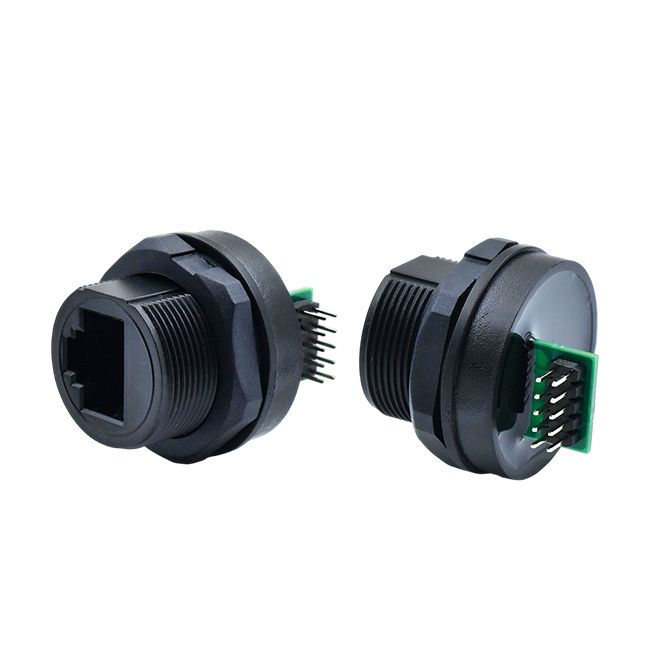

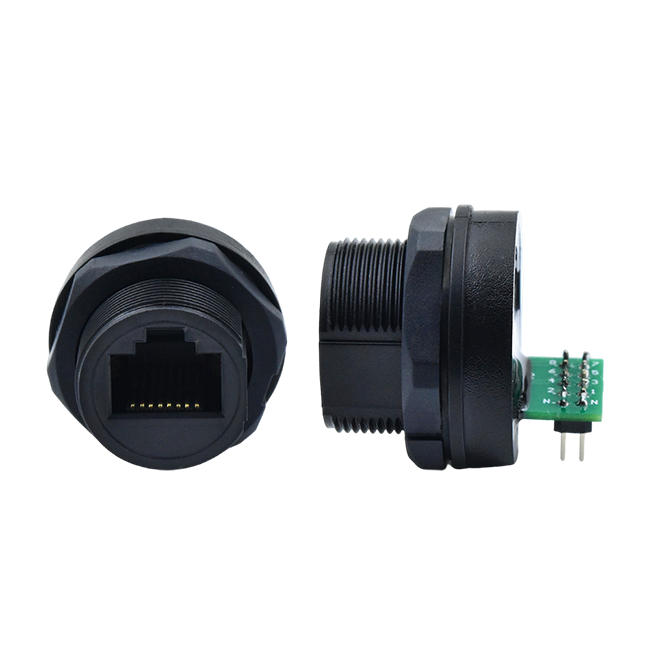

RJ45 Female Front Fastened Connector DIP

Return to List

Technical Data Download 3D

Contacts	Termination	Wire gauge in mm²	Wire gauge in AWG	Shell protection	Mechanical operation	Upper temperature	Lower temperture
8	-	-	-	IP67	＞100 mating cycles	+85℃	-25℃

Rated voltage	Rated current(40℃)	Contact resistance	Insulation resistance
300V	-	-	-

Pin contact	Socket contact	Contact plating
CuZn	CuSn	Au

The 3D feature is not yet available, so stay tuned!
