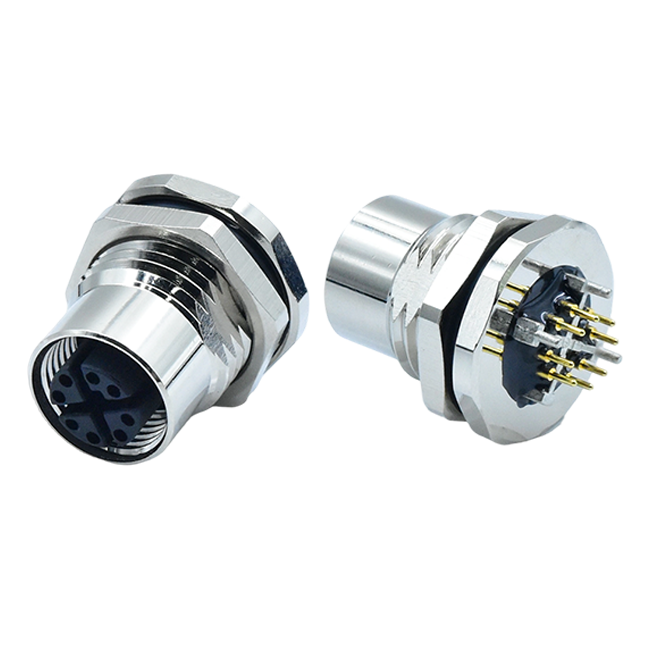

M12 X-Coding 8Pins Female Front Mount Connector , Meet EN45545 Railway Standard

Return to List

Technical Data Download 3D

Contacts	Termination	Wire gauge in mm²	Wire gauge in AWG	Shell protection	Mechanical operation	Upper temperature	Lower temperture
8	solder	-	-	IP67	＞100 mating cycles	+105℃	-40℃

Rated voltage	Rated current	Contact resistance	Insulation resistance
50V AC / 60V DC	0.5A	-	-

Insulation materials meet	Pin contact	Coupling nut/screw	Insulation plastic
EN45545	Copper alloy with Gold plating	Brass with nickel plating	PA66+GF(UL94V-0)
