How does an M23 connector connect to industrial servo motors?

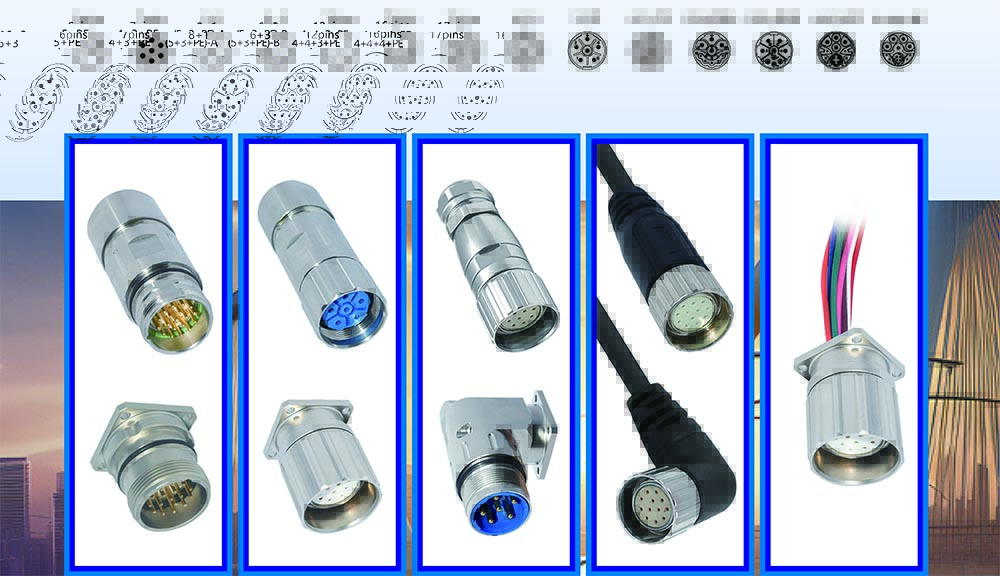

　　M23 connectors are divided into two types: power-type and signal-type. They are available with core counts ranging from 6 to 19, featuring comprehensive 360-degree shielding and an IP67/IP68 waterproof rating. Widely used in various industrial equipment, mechanical devices, and aerospace technology fields, they demonstrate excellent performance and adaptability.

　　In servo motor control systems, M23 connectors play a crucial role. To ensure the stable and efficient operation of motors, they must be securely connected to controllers, encoders, and other accessories. Thanks to their reliable interface design, M23 connectors provide a solid guarantee for signal transmission, ensuring smoothness and integrity. Compared with traditional connection methods, they exhibit superior durability and protection performance, enabling long-term stable operation even in extremely harsh working environments.

　　M23 connectors also boast outstanding flexibility and configurability. Whether for signal transmission or power supply, they can be flexibly configured according to actual needs. For different motors, sensors, and power supply devices, the most suitable connection method can be selected based on specific conditions, greatly facilitating on-site debugging and maintenance.

　　M23 circular connectors support high-speed transmission and multi-channel signal transmission, fully meeting the stringent requirements of high-performance control systems. By choosing different pin coding methods, they can achieve multiple signal transmission and control functions, such as pulse width modulation (PWM), comparator output, and digital input/output (DIO), showcasing their excellent diversity and functionality.
