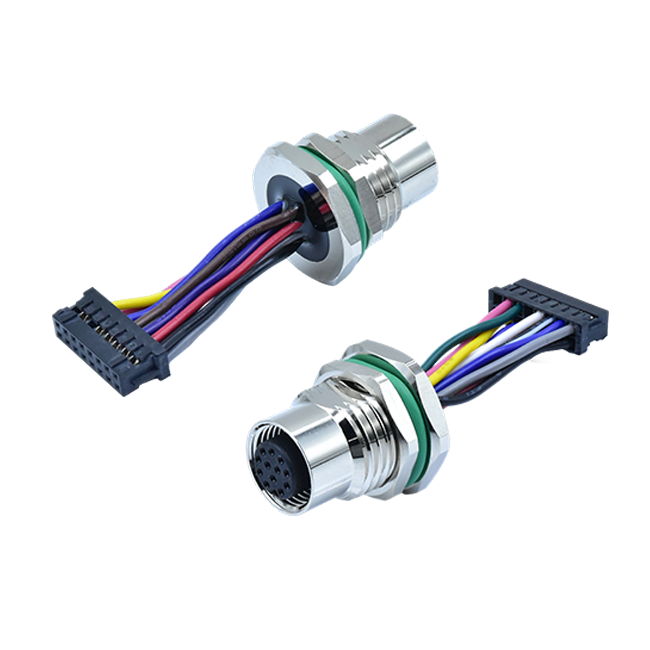

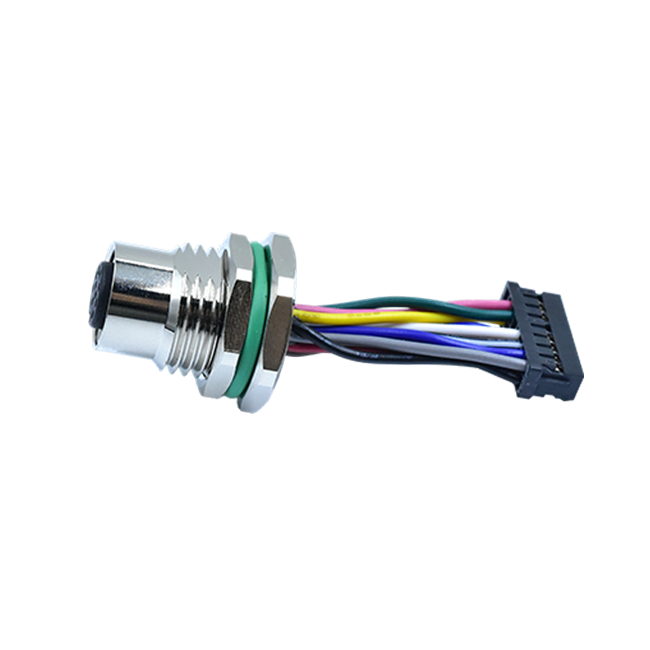

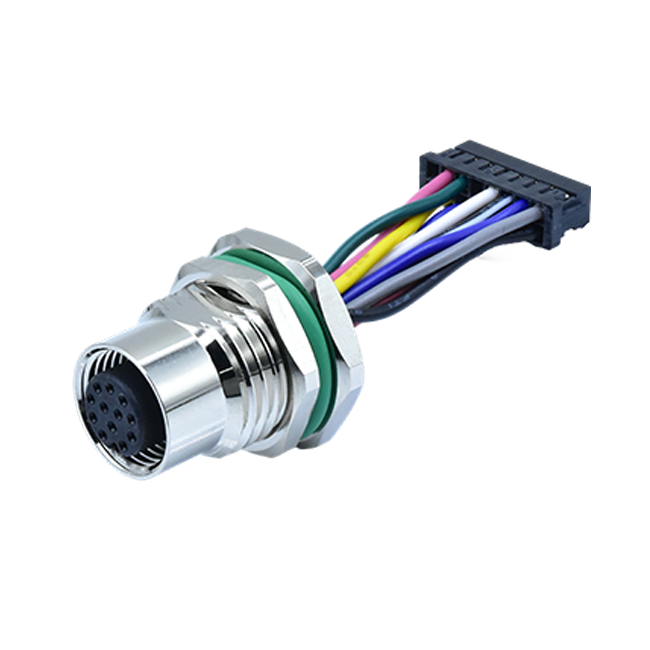

M12 A-Coding 12Pins Female Panel Connector (Front Lock M16×1.5) With Cable, HOUSING Connector At The End

Return to List

Technical Data Download 3D

Contacts	Termination	Wire gauge in mm²	Wire gauge in AWG	Shell protection	Mechanical operation	Upper temperature	Lower temperture
12	-	-	-	IP67 / IP68	＞100 mating cycles	+80℃	-25℃

Rated voltage	Rated current(40℃)	Contact resistance	Insulation resistance
-	-	-	-

Pin contact	Socket contact	Contact plating
CuZn	CuSn	Au
