New Product Update | Signal Automotive High-Frequency Coaxial Connector and Wiring Harness Assembly Launched

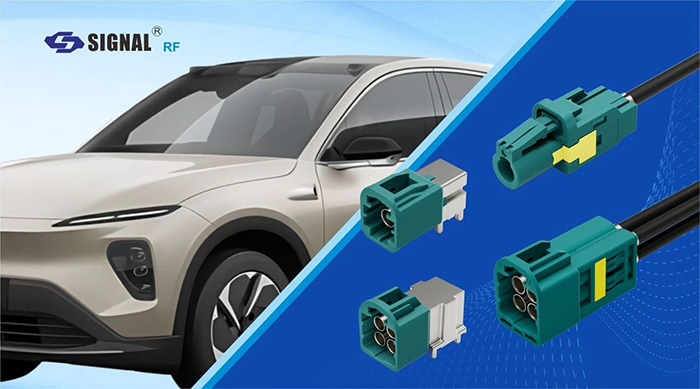

        Mini-FAKRA connectors are miniaturized versions of the standard FAKRA connector, designed specifically for space-constrained applications. They offer high-frequency performance, lightweight construction, and a smaller size, while retaining the functionality and stability of the FAKRA series. As automotive electronics, communication equipment, and industrial applications increasingly demand miniaturization and high density, Mini-FAKRA has become an ideal connector solution.

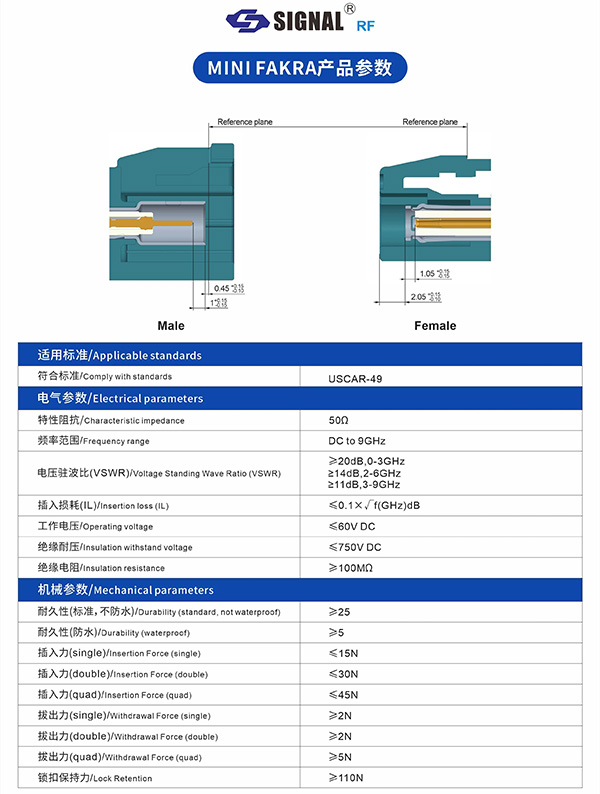

        I. SIGNAL Mini-FAKRA Connector Parameters

        II. Functional Highlights of the SIGNAL Mini-FAKRA Connector

        1. Space Saving

        Compared to traditional FAKRA connectors, Mini-FAKRA reduces weight and size. The compact size saves up to 80% of space, allowing for more connections in limited areas.

        2. High-Speed Data Transmission

        Supports data rates up to 28Gbps and frequencies up to 9GHz, meeting the high-performance and secure RF signal transmission requirements of the automotive industry's USCAR.

        3. High Reliability

        Mini FAKRA connectors remain stable even under extreme conditions; possess excellent anti-interference and sealing performance; operate stably in a temperature range of -40°C to +105°C; easily handle severe temperature fluctuations that may occur in automotive engine compartments and interiors; have a long mating life and reliable contact under vibration; reduce the risk of connection failure during driving.

        III. SIGNAL Mini-FAKRA Connector Application Scenarios

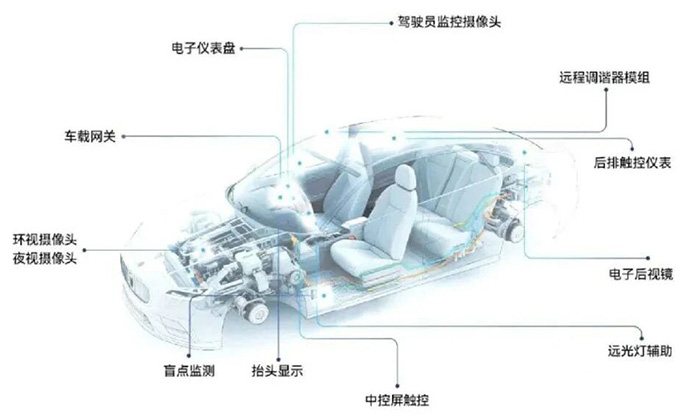

        Automotive Electronic Systems: GPS antenna, keyless entry, automatic parking, reversing camera system, in-vehicle communication module (4G/5G, Wi-Fi, V2X).

        Audio/Visual Systems: Satellite broadcasting, high-definition display screen, passenger entertainment screen, rear-seat touchscreen instrument cluster, digital TV (DAB, Sirius XM), multimedia image input and transmission.

        Diagnostic and Safety Systems: OBD on-board diagnostic system, airbag trigger connection, high beam assist, lane departure warning, traffic sign recognition, night vision, surround view, front view, rear view, side view.

        Industrial and Communication Applications: High-density IoT devices, sensor connection modules, wireless data transmission system.
