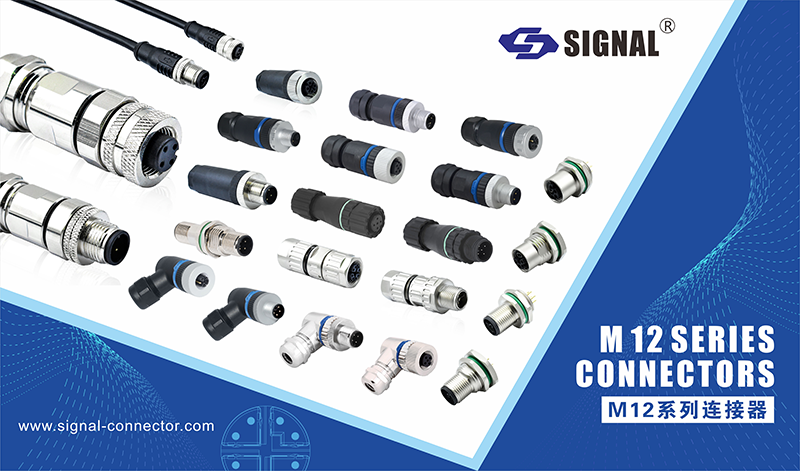

What are the functions of the M12 circular connector coding?

        Preventing Incorrect Mating: M12 connectors feature a unique coding design designed to prevent mismating and blind mating, ensuring they only pair correctly with sockets or plugs that match the coding. This precise design effectively avoids equipment malfunctions or damage due to operational errors, significantly improving operational safety and reliability.

        Identifying Electrical Characteristics: The coding system clearly identifies the connector's electrical characteristics, including key parameters such as supported Ethernet speeds and power types, helping users make informed decisions during selection and use.

        Providing Shielding Protection: Most M12 connectors are equipped with shielding to reduce electromagnetic interference (EMI) and radio frequency interference (RFI), ensuring stable and reliable data transmission.

        Currently, A, B, D, and X coding are among the most popular coding types for M12 connectors. A coding is suitable for general-purpose sensor and encoder connections; B coding is designed for Profibus applications; D coding is suitable for communication requirements with high transmission speeds and high protection levels; and X coding is gradually becoming the preferred choice for future high-speed industrial Ethernet applications and is expected to replace existing A and D codings. Thanks to its superior physical performance and stable signal transmission capabilities, the M12 connector has been widely used in various industries. Users can choose the most suitable encoding type according to specific application scenarios and individual needs.
