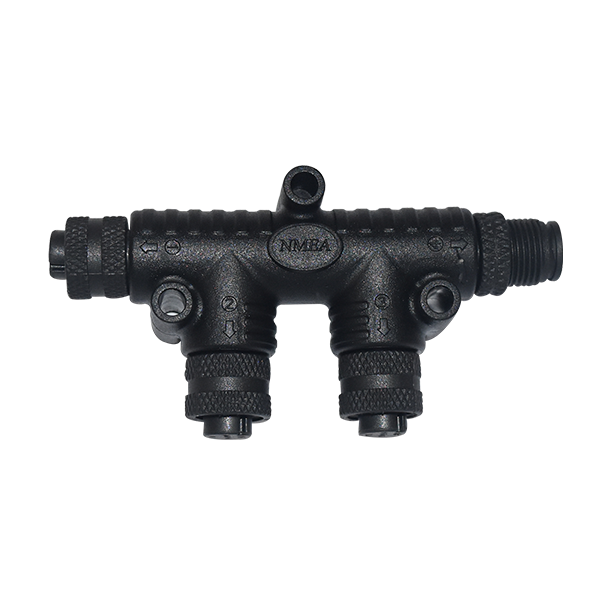

M12 5Pin A-Coding (Micro) T-Connector Plastic Screw

Return to List

Technical Data Download 3D

Contacts	Termination	Wire gauge in mm²	Wire gauge in AWG	Shell protection	Mechanical operation	Upper temperature	Lower temperture
5	-	-	-	IP67	＞100 mating cycles	+85℃	-25℃

Rated voltage	Rated current(40℃)	Contact resistance	Insulation resistance
60V	4A	≤5 mΩ	＞100MΩ

Contacts plating	Connector contacts	Shielding
Gold plated	Brass with gold plated	Unshieded

The 3D feature is not yet available, so stay tuned!
