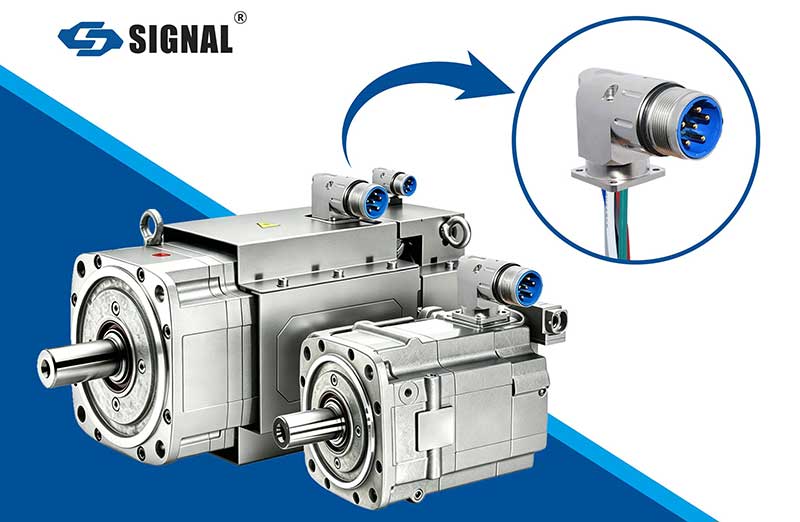

SIGNAL M23 Connectors: A Reliable Partner for Servo Motors

　　In today's era of rapid advancement in Industry 4.0 and intelligent manufacturing, the stability and reliability of servo systems increasingly depend on the quality of their "connections." Whether they are equipment integrators or motor manufacturers, all are seeking connection solutions that meet higher standards and offer greater flexibility and reliability.

　　What are the requirements for M23 connectors in servo motor applications?

　　1. Must possess electromagnetic interference (EMI) immunity.

　　Servo drives and frequency converters generate high-frequency electromagnetic interference. If the shielding of an M23 connector is inadequate, this interference can intrude upon the encoder signals, directly leading to a failure of the servo motor system.

　　2. Must demonstrate robust adaptability to harsh environments.

　　Servo motors are frequently installed in environments such as machine tools, production lines, and workshops, where exposure to oil, cutting fluids, dust, and moisture is inevitable. The ingress protection (IP) rating of the M23 connector directly determines the operational lifespan of the servo motor.

　　3. Must provide vibration resistance and anti-loosening capabilities.

　　During operation, servo motors generate continuous vibrations and are subjected to frequent shock loads from rapid forward and reverse reversals. Should a connector become loose, it will directly result in system downtime.

　　4. Must be compatible with mainstream servo motor interfaces.

　　The connectors must be fully compatible with the interface standards of mainstream servo systems originating from Europe, the Americas, and Japan.

　　SIGNAL M23 Connectors: Meeting the Connection Needs of Servo Motors

　　SIGNAL M23 connectors have obtained professional certifications—including CE and TUV—and possess a comprehensive suite of product certifications. They are now widely utilized throughout the servo motor industry and have garnered widespread acclaim. Its key features are as follows:

　　1.  Strong Anti-Interference Capability

　　The SIGNAL M23 connector features a metal housing combined with 360° electromagnetic shielding—where the shielding layer maintains continuous conductivity (achieved through a reliable crimp connection between the housing and the cable's shielding layer)—thereby providing excellent resistance to electromagnetic interference.

　　2.  Resilience in Harsh Environments

　　The SIGNAL M23 connector operates reliably within a temperature range of -25°C to 85°C. With an IP67/IP68 protection rating, it effectively prevents the ingress of dust and moisture, thereby safeguarding servo motors against short circuits.

　　3.  Vibration Resistance and Anti-Loosening

　　The SIGNAL M23 connector employs a threaded locking mechanism alongside a built-in anti-vibration locking structure. This design effectively prevents the connector from loosening or detaching, ensuring a stable and reliable connection over the long term.

　　4.  Universal Brand Compatibility: Seamless Replacement for Mainstream Servo Interfaces

　　The SIGNAL M23 connector is compatible with leading servo motor brands, including Mitsubishi, Siemens, Omron, AB, SEW, FANUC, Beckhoff, Inovance, Yaskawa, and others.

　　5. Comprehensive Range of Specifications

　　SIGNAL M23 connectors offer two wiring methods—soldering and crimping—and are available in configurations ranging from 6 to 19 pins, fully meeting your specific requirements.

　　6. Additional Advantages

　　Quality Assurance: Every SIGNAL servo motor cable harness and connector undergoes rigorous testing to ensure guaranteed quality, ensuring they are ready for immediate use upon delivery.

　　In-Depth Customization: Cable harness materials, lengths, and suitability for specific operating environments can all be customized according to your specifications, truly embodying the principle of "designing solutions tailored to specific working conditions."

　　The SIGNAL M23 connector series is widely utilized within the servo motor sector. If you are interested in the M23 series connectors, please feel free to contact us directly online to request a free trial.
