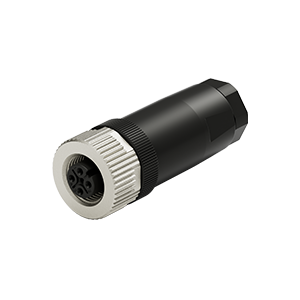

M12 A-coded 4-pin female straight field-wireable connector (M12x1.0, plastic screw-lock), PG7, zinc alloy nut

Return to List

Technical Data Download 3D

Contacts	Termination	Wire gauge in mm²	Wire gauge in AWG	Shell protection	Mechanical operation	Upper temperature	Lower temperture
4	Die-cast screw	-	-	IP67/IP68	＞100 mating cycles	+85℃	-25℃

Rated voltage	Rated current	Contact resistance	Insulation resistance
240V	4A	-	-

Pin contact	Socket contact	Contact plating
CuZn	CuSn	Au
