How to choose M-series waterproof circular connectors?

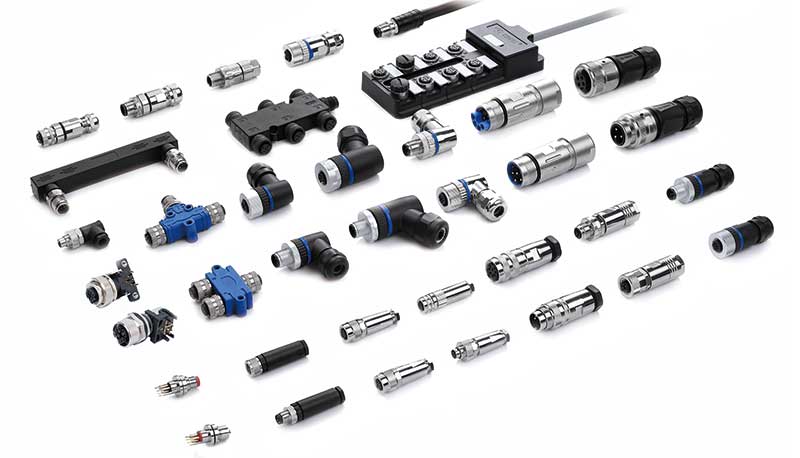

　　M-series circular connectors are widely used in industrial automation, rail transportation, aerospace, and other fields due to their stable signal transmission and waterproof design. So how do we choose M-series connectors to meet our design needs? Below is a brief overview, focusing on the following aspects:

　　I. Structure

　　Connectors primarily connect two components, therefore there are many connection methods, but they generally require a male and female pair. The product structure needs to be selected based on the specific product design. Several key structural considerations for the M-series include:

　　① The size of the housing aperture and the housing wall thickness. For example, if the housing can have an aperture diameter of 16.2mm and a wall thickness of 5mm, a front-locking panel type can be selected.

　　② The aesthetic appeal of the product design, allowing sufficient space for connector exposure.

　　③ The number of pins required by the circuit. This determines whether a 4-pin or multi-pin connector is needed.

　　④ How the connector is assembled, determining the choice of product coding, such as soldering or screw-locking parameters.

　　II. Performance

　　M-series connectors are primarily used for conducting electrical or signal transmission. Therefore, the product's performance parameters must be clearly defined, such as current rating, impedance, and withstand voltage. For M-series connectors, the manufacturer should conduct full electrical performance testing before shipping.

　　III. Environmental Parameters

　　Since the main advantage of M-series connectors is waterproofing, the waterproof rating is a particularly important selection parameter. Furthermore, considering the industrial automation application environment, oil resistance, corrosion resistance, high and low temperature resistance, and mating cycles are all factors to consider.

　　Signal M-series waterproof connectors fully consider the key selection parameters for users and are designed according to IEC standards. They are widely used in various fields such as industrial automation and rail transportation, and have gained recognition from numerous customers.
